AC650V (Obsolete) / AC Drives
Built-in EMC Filter
Encoder option
Simple Set-Up and Programming
Removable Key Pad
Extremely compact
V/Hz Control Linear or Quadratic
International CODE
The 650v complies to standard code when installed in accordance to manufacturers installation manual.
-
EN50178
(Protection, Low Voltage Directive) -
EN50081-1 (1992)
(Emissions per unit in ambient at 230V with EMC filter) -
EN50081-2 (1992)
(Emissions per unit in industrial environment at 400V with EMC filter) -
EN50082-2 (1995)
(Immune in industrial EMC environment ) -
EN61800-3
(Standard EMC specifications per Drive) -
EN61000-3-2
(Standard harmonics with line inductors) -
Complies with CE, UL e c-UL
OPTIONS
> Operators Keypad 6901
> Communication Technology Box Modbus RTU
> Cloning Module 6514
> EMC - Filter
> Protection IP40 (NEMA 1)
> Line reactors for European and North American markets (UL-CSA)
> Inductors for long motor leads
Product Overview

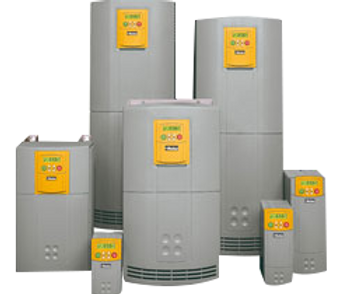

AC650V(Obsolete) Series
V/Hz and Sensorless Vector Inverter
From 0.25 to 110 kW (0.3 to 150 Hp)
Description
The 650V series inverters provide simple, no-fuss speed control of standard three-phase AC motors from 0.3 to 150 HP. Sensorless vector provides exceptional dynamic response.
They are full of useful features including pre-programmed applications - all designed to simplify set-up, installation and operation.
With the 650 series you are in control of your application immediately - no complicated set-up procedures, no confusing menu navigation: just quick and easy operation straight from the box.
Technical Specifications
-
Input Power 50-60Hz ±5%
Single Phase 220-240Vac ±10%
Three Phase 220-240Vac ±10%
Three phase 380-460Vac ±10% -
Ambient Temperature
0-40℃ -
Overload
150% for 30 seconds -
Output Frequency
Adjustable 0-240Hz -
Protection Option IP20
Inputs/Outputs
-
Analogue Inputs 2
Speed reference (0-10V, 4-20mA) -
Analogue Outputs 1 configurable
speed/load (0-10V) -
Digital Inputs 5 configurable
start/stop/direction/8 preset speeds -
Digital Inputs/Outputs 2
Configurable as inputs or outputs -
Digital Outputs Dry Contacts 1 configurable
(1A @ 240V) -
All outputs are configurable for:
Speed feedback, zero speed, running, healthy -
Motor Thermistor input 1
-
Reference supplies
+10Vdc
-10Vdc
+24Vdc
OPERATORS PANEL
Inverter mounted or removable
Six (6) pushbuttons have the following sequence::
start/stop
direction
increase/decrease speed
program menu
select parameters
The backlit LCD display depicts following:
Output load
Speed set-point
Output frequency
Motor rotating and direction
Available Sizes
